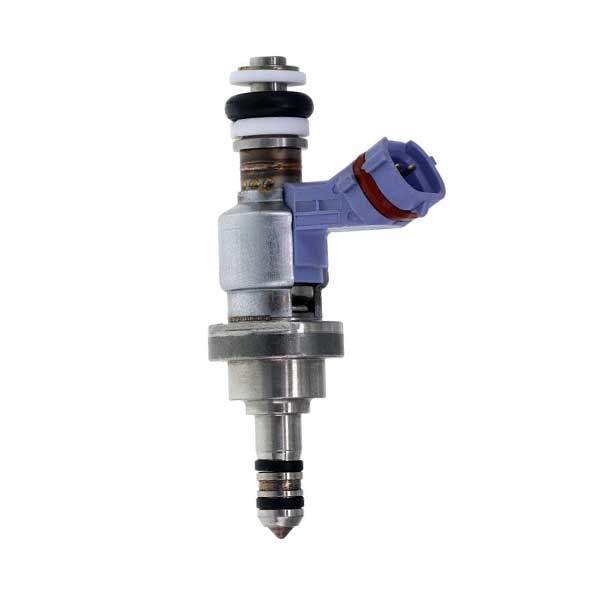

Toyota/Lexus GDI Fuel Injector Cleaning and High Pressure Flow Testing

Toyota/Lexus GDI Fuel Injector Cleaning and High Pressure Flow Testing

Type: Fuel Injector Flow Testing and Cleaning

$45.00
$45.00
Sale Sold out
Shipping calculated at checkout.

      Toyota/Lexus
      Gasoline Direct Injector
      Cleaning and Testing Services

      When it comes to cleaning and testing gasoline direct fuel injectors, precision is everything. Testing direct fuel injectors at low pressure doesn’t give you the full picture. It’s like testing your port injectors at 1.5 PSI—not even close to the actual conditions in your engine. Our specialized equipment allows us to test injectors at the high pressures they experience in real-world driving, giving you accurate results that reflect true performance of the injector.

      Most of our competitors can’t match this level of testing. Unless they're using similar equipment—which most don't—they’re forced to test injectors at low pressure, providing incomplete data that doesn't reveal how injectors will handle actual driving conditions. This means you’re not seeing potential issues until they become real problems on the road.

      At our facility, we go beyond basic testing. We evaluate each injector with a injector part number specific, multi-stage test plan that simulates various load demands, ensuring your injectors are performing under a range of conditions. In contrast, many competitors run just a single test at low pressure, which doesn’t give a clear picture of performance under high-stress conditions. With us, you get thorough testing that helps ensure your engine runs as efficiently and powerfully as it should.

      This is a cleaning and testing service on your supplied injectors.

      We want to ensure you fully understand our GDI fuel injector cleaning and testing service. When you choose our service, you're paying for both the cleaning and testing of your injectors. While we aim to restore performance through proper cleaning, some injectors may still not meet performance or part number flow standards after testing. Please note that we do not offer refunds for the service on failed injectors, as the fee covers the time, equipment, and resources used in the process.

      In some cases, injector failure may be minimal, and replacement may not be necessary. We evaluate all tests and provide recommendations based on a comprehensive review. Our goal is to offer the best possible service and help you make informed decisions about your injectors. Feel free to reach out with any questions.

      High Pressure GDI Fuel Injector Flow Testing - The Injector Shop

      Video will open in a new window

      Using the mobile app? Copy this link into your browser:



      $45.00 per injector
      Select quantity to match the number of injectors you are sending.
      Non Toyota/Lexus service can be found here.

      The Injector Shop GDI cleaning and testing service consists of:

      1. Cleaning
        1. Removal of serviceable o-rings, seals, micro filters, and spacer components
        2. Multi-stage heated ultrasonic cleaning
        3. Pressurized back flush to remove anything left internally after ultrasonic cleaning

          2.  Injector number specific test plans
          1. Electrical test
          2. Nozzle leakage test at high pressure
          3. Injector Volume Measurement
          4. Dynamic Spray Testing
          5. Real-time oscilloscope testing

          3. Parts replacement
          1. Fuel rail o-rings, spacers, and keepers
          2. Compression seals
          3. Micro Filters

          SHIP YOUR INJECTORS TO:

          The Injector Shop
          19407 99th Ave SE
          Snohomish WA 98296

          Shipping checklist:

          • Remove fuel injectors from fuel rail. Any fuel injectors sent in the rail will incur additional labor and shipping charges, as well as put your injectors at the end of the line.
          • Remove any external grease, oils, and gasoline from injectors than place in seal able plastic bags. We are not responsible for any incoming freight that is leaking or has external fuel odor and rejected/returned by shipper.
          • Make sure to send the injectors complete with the old O-rings and sealing grommets. This is especially important on any modified injectors or swaps.
          • Cylinder numbers can be applied for your records, we do not need them but will sequence our reports to your numbering.
          • Print and fill out the below customer information and include it with the injector shipment.
          • Provide the following Customer Information with the shipment:


            Name­­­­­­­­­­­­­­­­­­­­­­­­­­­:

            Return Street Address:

            City, State, Zip:

            Phone Number:

            Email:

            Vehicle Year:

            Vehicle Make:

            Vehicle Model:

            Vehicle Engine Size:

            Number of injector’s sent:


          VERY IMPORTANT SHIPPING NOTE:
           You will have a choice of return shipping options from us. You will also have the option of purchasing additional shipping insurance here. The Injector Shop is not responsible for lost shipments or damage from any shipping provider.

          Current turnaround time:
          GDI Injectors will typically be ready for return shipment in 2 business days after they are received. Please feel free to contact us and ask our current turnaround time.
            Injectors abandoned and unpaid:
            Any and all fuel injectors abandoned with us for a period longer than 30 calendar days, and the service requested is not paid for, will become the property of the The Injector Shop.
