GDI Fuel Injector Testing and Rebuilding

Regular price $29.95
Qty:

Type: Fuel Injector Flow Testing and Cleaning

Vendor: The Injector Shop

Product Description

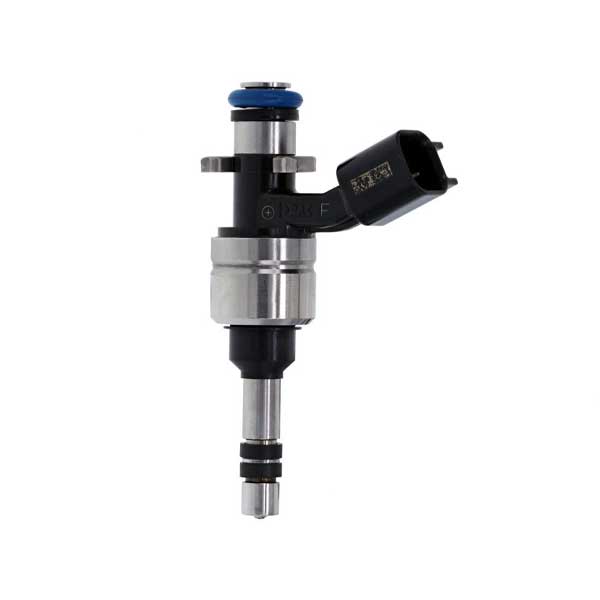

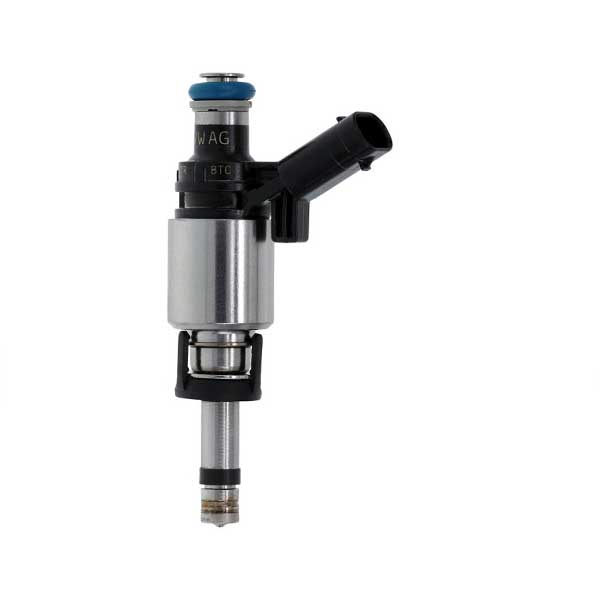

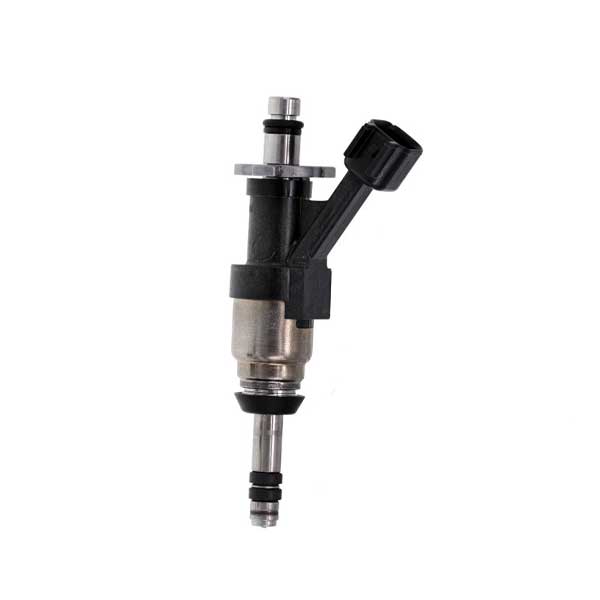

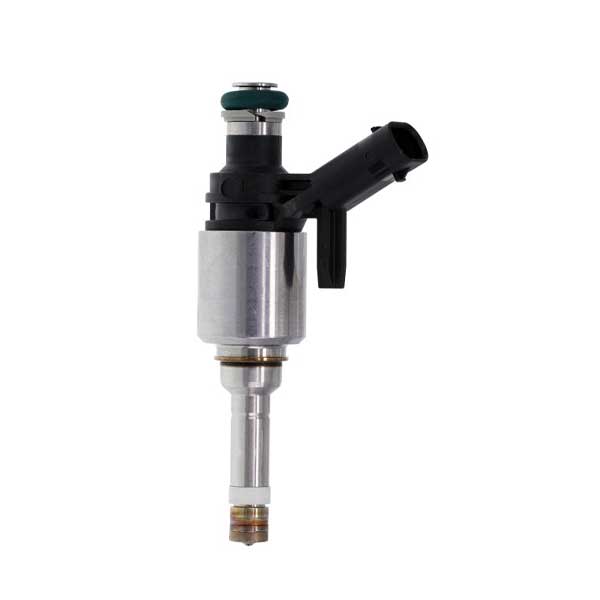

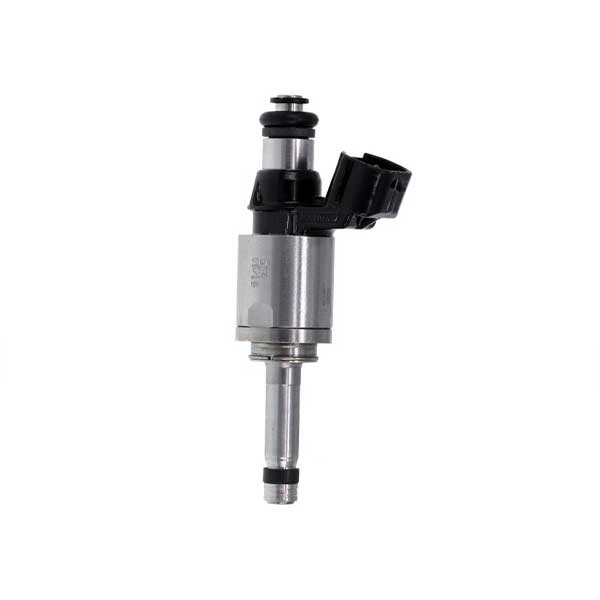

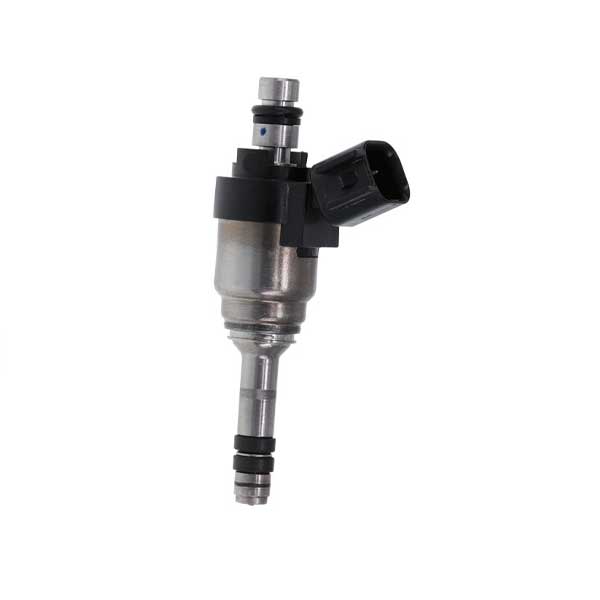

      GDI Fuel Injector
      Rebuild Service
      OEM Test Pressures and Plans

      The Injector Shop is proud to provide GDI fuel injectors testing and cleaning services that utilize precision GDI specific test equipment, unlike most of our competitors that are testing GDI injectors on equipment designed for low pressure port fuel injection systems (ASNU type).

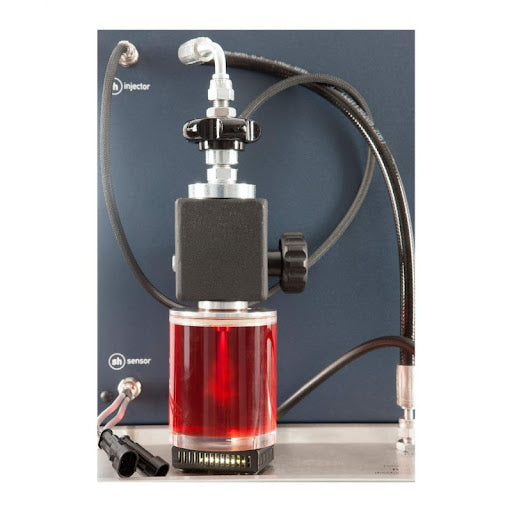

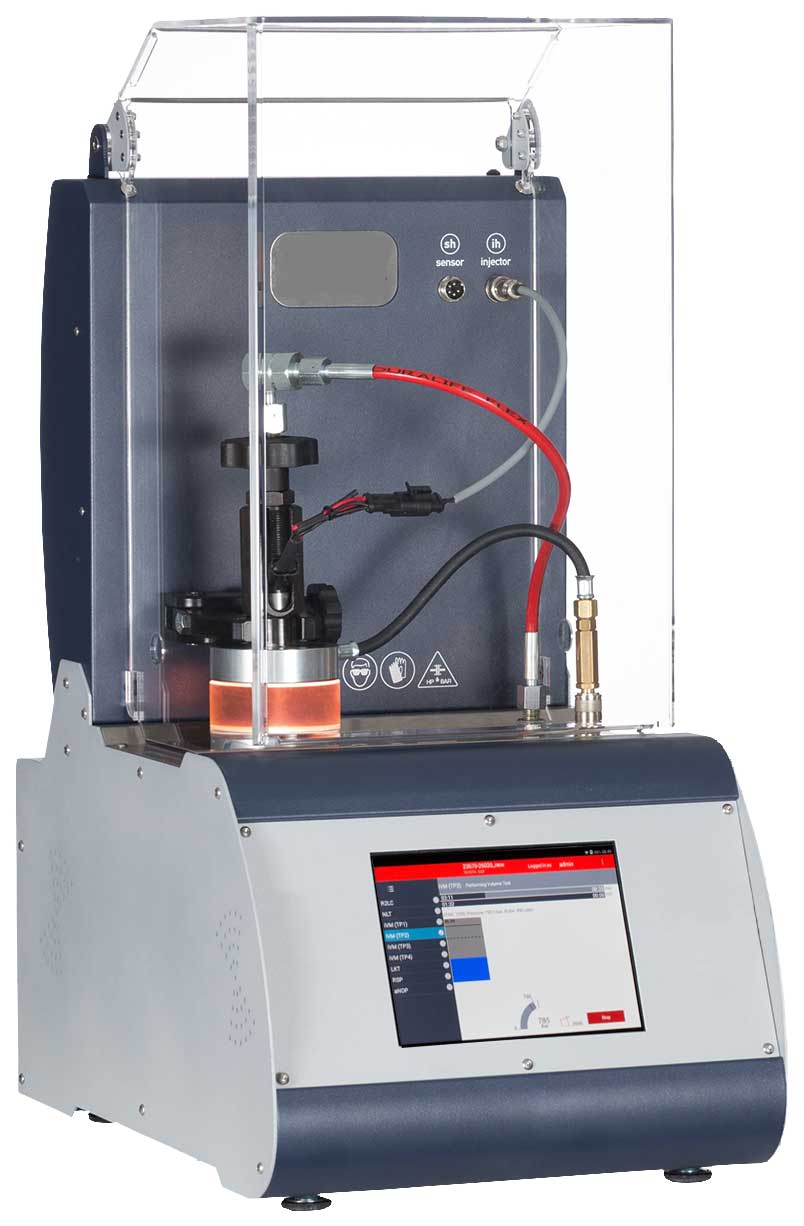

      GDI Injectors are safely tested in specialized GDI test equipment at operating pressures typically up to 3000 PSI against OEM test plans utilizing precision measuring devices that measure liquid flow on a shot to shot basis, at actual operating pressure. Testing this way allows for precision measurement under operating conditions that can be digitally analyzed against the OEM flow test plans set by the injector manufacturer. NO GUESSWORK. PERIOD!

      Not only do GDI systems run at considerably higher fuel pressures than port injection, GDI fuel injectors operate pulse widths at micro second measurements, where port systems operate at milli second time measurements, and our GDI specific equipment tests at these micro second operational parameters while performing full function load testing.

      Port fuel injector test benches that the majority of our competition use for GDI testing simply cannot do this. This precision testing at actual GDI injector operating conditions allows us the ability to report the injector performance against the OEM injector specific test plan with 100% accuracy. This level of accuracy CANNOT be performed at any shop that is testing your GDI injectors on a port fuel injection bench at lower than operating pressure. If you are paying to have your GDI fuel injectors tested on an ASNU or similar port fuel injector flow bench you are getting the operators best guess as to how your injectors are performing....PERIOD!

      High Pressure GDI Fuel Injector Flow Testing - The Injector Shop

      Video will open in a new window

      Using the mobile app? Copy this link into your browser:



      There is absolutely NO GUESSWORK here at The Injector Shop. Test results are computer generated in a very easy to understand color coded results. Individual test results can be provided digitally, as well as printed summary report.

      $24.95 per injector
      Select quantity to match the number of injectors you are sending




      The Injector Shop GDI rebuild/cleaning service consists of:

      1. Cleaning
        1. Removal of serviceable o-rings, seals, micro filters, and spacer components
        2. Multi-stage heated ultrasonic cleaning
        3. Pressurized back flush to remove anything left internally after ultrasonic cleaning

          2.  Injector number specific test plans
          1. Electrical test for Ω and µH
          2. Nozzle leakage test at high pressure
          3. Injector Volume Measurement
            a. Light Load
            b. Part load
            c. Heavy load
            d. Emission load* (*not performed on all test plans)
          4. Dynamic Spray Testing
          5. Real-time oscilloscope testing

          3. Parts replacement*
          1. Fuel rail o-rings and spacers
          2. Compression seals
          3. Micro Filters

          SHIP YOUR INJECTORS TO:

          The Injector Shop
          19407 99th Ave SE
          Snohomish WA 98296



          Shipping checklist:
          • Remove fuel injectors from fuel rail. Any fuel injectors sent in the rail will incur additional labor and shipping charges, as well as put your injectors at the end of the line.
          • Remove any external grease, oils, and gasoline from injectors than place in seal able plastic bags. We are not responsible for any incoming freight that is leaking or has external fuel odor and rejected/returned by shipper.
          • Make sure to send the injectors complete with the old O-rings and sealing grommets. This is especially important on any modified injectors or swaps.
          • Cylinder numbers can be applied for your records, we do not need them but will sequence our reports to your numbering.
          • Print and fill out the below customer information and include it with the injector shipment.

          VERY IMPORTANT SHIPPING NOTE:
          You will have a choice of return shipping options from us. You will also have the option of purchasing additional shipping insurance here. The Injector Shop is not responsible for lost shipments or damage from any shipping provider.



          Customer Information:

          Name­­­­­­­­­­­­­­­­­­­­­­­­­­­:

          Street Address:

          City, State, Zip:

          Phone Number:

          Email:

          Vehicle Year:

          Vehicle Make:

          Vehicle Model:

          Vehicle Engine Size:

          Number of injector’s sent:



          Current turnaround time:
          GDI Injectors will typically be ready for return shipment in 2 business days after they are received. Please feel free to contact us and ask our current turnaround time.



          Warranty:

          The Injector Shop unconditionally guarantees the flow performance of your GDI injectors for 1 year.

          The Injector Shop does not place any guarantee on the defect of your injector such as but not limited to electrical issues, internal injector metering component failure, external body leaks, and physical body damage.


          Problems with injectors that cannot be fixed by this service:

            • Electrically bad (bad injector coils)
            • External leaks
            • Damaged pintle
            • Fire damage
            • Rust damage
            • Worn metering parts

              Important note:
              Any injectors that are sent in that cannot be serviced for whatever reason will be refunded individually or as a set. If full refund is given because the entire set of injectors is bad than return shipping will be billed to customer or injectors will be disposed of by The Injector Shop.

              Injectors abandoned and unpaid:
              Any and all fuel injectors abandoned with us for a period longer than 30 calendar days, and the service requested is not paid for, will become the property of the The Injector Shop.
