Fuel Injectors Flow Testing and Cleaning Service - Port Top Feed Gasoline Injectors

Fuel Injectors Flow Testing and Cleaning Service - Port Top Feed Gasoline Injectors


Type: Fuel Injector Flow Testing and Cleaning


Regular price $18.50
Sale price $18.50 Regular price
Sale Sold out
Shipping calculated at checkout.

Top Feed Port Fuel Injectors Cleaning and Flow Test Service

$18.50 per injector
Select quantity to number of injectors you are sending
This service is for gasoline top feed port fuel injectors. It is not for GDI, side feed, TBI, or hose type injectors.

Service on your fuel injectors includes the following:
  • Ohm Test injector coil
  • Multiple stage heated ultrasonic cleaning
  • Back flush injector after cleaning

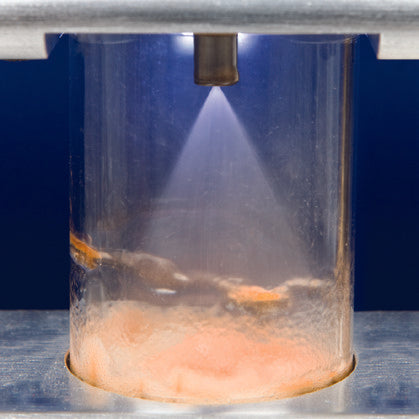

  • Spray Pattern testing
  • Static flow test at 43.5psi/3 bar* after cleaning
  • 2 stage dynamic flow testing
  • Replacement of o-rings, filters, seals, and plastic components as available.
  • Internal lubrication
  • Fully documented flow data sheet

Injectors are not flow tested prior to cleaning with this service. Once received, your injectors go straight to our multi stage heated ultrasonic cleaning, and are tested for proper operation after all cleaning functions are performed. If you want pre-cleaning flow tests performed follow this link here.

* Our standard test pressure is 43.5PSI / 3bar. If you need your injectors tested at a different pressure please let us know before testing. This service includes single value pressure testing only. If your project requires you to have flow documentation at multiple pressure values, an additional charge will be incurred.



Why send your injectors to The Injector Shop?

  1. 30+ years of experience with flow testing and cleaning gasoline fuel injectors.
  2. Life time cleaning (see warranty information)
  3. Quality programmable computerized flow benches used, not less accurate in-expensive offshore benches (I have one of them too, so I know what they are and are not capable of)
  4. Injectors are our primary business, not our sideline.
  5. Extensive database of injector flow rates

SHIP YOUR INJECTORS TO:

The Injector Shop
19407 99th Ave SE
Snohomish WA 98296


Shipping checklist:

  • Remove fuel injectors from fuel rail. Any fuel injectors sent in the rail will incur additional labor and shipping charges, as well as put your injectors at the end of the line.
  • Remove any external grease, oils, and gasoline from injectors than place in seal able plastic bags. We are not responsible for any incoming freight that is leaking or has external fuel odor and rejected/returned by shipper.
  • Make sure to send the injectors complete with the old O-rings and sealing grommets. This is especially important on any modified injectors or swaps.
  • Cylinder numbers can be applied for your records, we do not need them but will sequence our reports to your numbering.
  • Print and fill out the below customer information and include it with the injector shipment.

PLEASE DON'T SEND IN CHINESE KNOCK OFF INJECTORS:
Please be aware that if you send in non-OEM (Chinese knock off) injectors we will immediately re-package and send them back with refund of service, minus return freight and a handling charge of $10.00. Bottom line is these knock offs are absolute junk, and I will not waste my time or your money testing them……PLEASE DON’T SEND THEM!!

VERY IMPORTANT SHIPPING NOTE:
Return shipping will be calculated and charged at checkout. There is an option for either USPS Priority, UPS 2nd day, or UPS next day. You have the option of purchasing return freight insurance here. The Injector Shop is not responsible for lost or damaged items in shipping.


Customer Information to include with injectors:

Name­­­­­­­­­­­­­­­­­­­­­­­­­­­:

Street Address:

City, State, Zip:

Phone Number:

Email:

Vehicle Year:

Vehicle Make:

Vehicle Model:

Vehicle Engine Size:

Number of injector’s sent:



Current turnaround time:
Injectors will typically be ready for return shipment in 1-2 business days after they are received. Please feel free to contact us and ask our current turnaround time.



Warranty:

The Injector Shop unconditionally guarantees the flow performance of your injectors for 1 year and conditionally guarantees the flow performance as long as the original purchaser own them*. Non transferable.

The Injector Shop does not place any guarantee on the defect of your injector such as but not limited to electrical issues, internal injector metering component failure, external body leaks, and physical body damage.

*after 1 year you will be charged for seal kits and freight only. There is never a charge to flow test or clean as long as you own the injectors. Your receipt must accompany any warranty claim for service.


Problems with injectors that cannot be fixed by this service:

    • Electrically bad (bad injector coils)
    • External leaks. Typically where the plastic electrical body seals with the main metal body
    • Damaged, broken, or missing pintle
    • Damaged electrical connectors
    • Damaged plastic or metal body
    • Fire damage
    • Rust damage
    • Worn internal metering parts

      Important notes:

      Bad Injectors:
      Any injectors that are sent in that cannot be serviced for whatever reason will be refunded individually. If the entire set of injectors is bad there will be a refund of the service but a charge will be incurred for testing per injector, currently $8.50 per injector.

      Painted Injectors:
      The cleaning process removes the OEM paint from older metal body fuel injectors. We do not re-apply paint. Paint application if desired is up to you, the injector owner or installer.

      Parts Replacement:
      While we maintain an extensive inventory of fuel injector service components, there are still injector components that are not readily available, or available at all. We will advise you of issues with parts, if any, when the injectors are submitted for service.

      Injectors abandoned and unpaid:
      Any and all fuel injectors abandoned with us for a period longer than 30 calendar days, and the service requested is not paid for, will become the property of the The Injector Shop.
